Post-Silicon Validation
Post-Silicon evaluation serves as a protection against possible attacks. By testing the resistance of a device to different types of attacks, it is possible to determine the robustness of its security.
Secure-IC utilizes System-on-Chip security evaluation; which consists in assessing the feasibility of state-of-the-art attacks against a given device through precise measurements. The ISO/IEC 17825 describes the most widely used methods for performing simple and accurate evaluations.
As contributor and editor of those standards, Secure-IC is an expert in SoC evaluation.
Post-Silicon Analysis with AnalyzrTM
AnalyzrTM evaluates Side-Channel security and vulnerability to Fault Injection at the post-silicon stage.

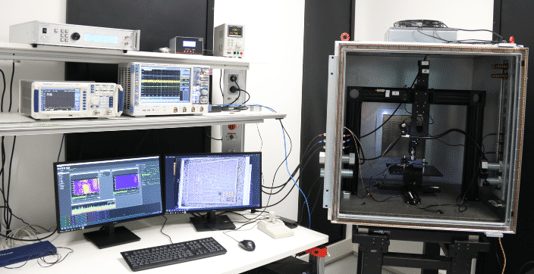

- High tech equipment
- Electromagnetic probes
- Oscilloscope
- XYZ table
- Electromagnetic Injection Station
- Laser injection station
- Power and Clock Glitch injection station
- Advanced Pattern Matching detection
- Equipment provided and installed
- ISO/IEC 17825
- ISO/IEC 20085
- Common Criteria
- ISO/IEC 15408
- FIPS-140-3
- Pre-processing
- Leakage detection tools
- NICV
- T-test
- Leakage exploitation tools
- Simple Power Analysis,
- Differential Power Analysis, Correlation Power Analysis, Linear Regression Analysis, Mutual Information Analysis, High-order Side Channel Analysis, AI-based Side Channel Analysis.
- Metrics detection tools
- Bit/bytes level error
- Crash detector
- Fault localizer
- Fault exploitation tools
- Differential Fault Analysis (NUEVA, Giraud)
- Genetic Algorithm based cartography
Secure-IC has a lot of experience in the testing of various platforms and targets including:
- Smartphones
- FPGA
- IoT Devices
- Microcontrollers
- Smartcards
- Etc.
Security for every step in design life-cycle
AnalyzrTM is a tool which is part of a larger solution called LaboryzrTM specifically designed to support companies through all the security stages of the design life-cycle.
Secure-IC tools can be used to detect Hardware Trojans and also for Black-Box analysis of devices.
Secure-IC can also provide services for security evaluation and penetration testing.
